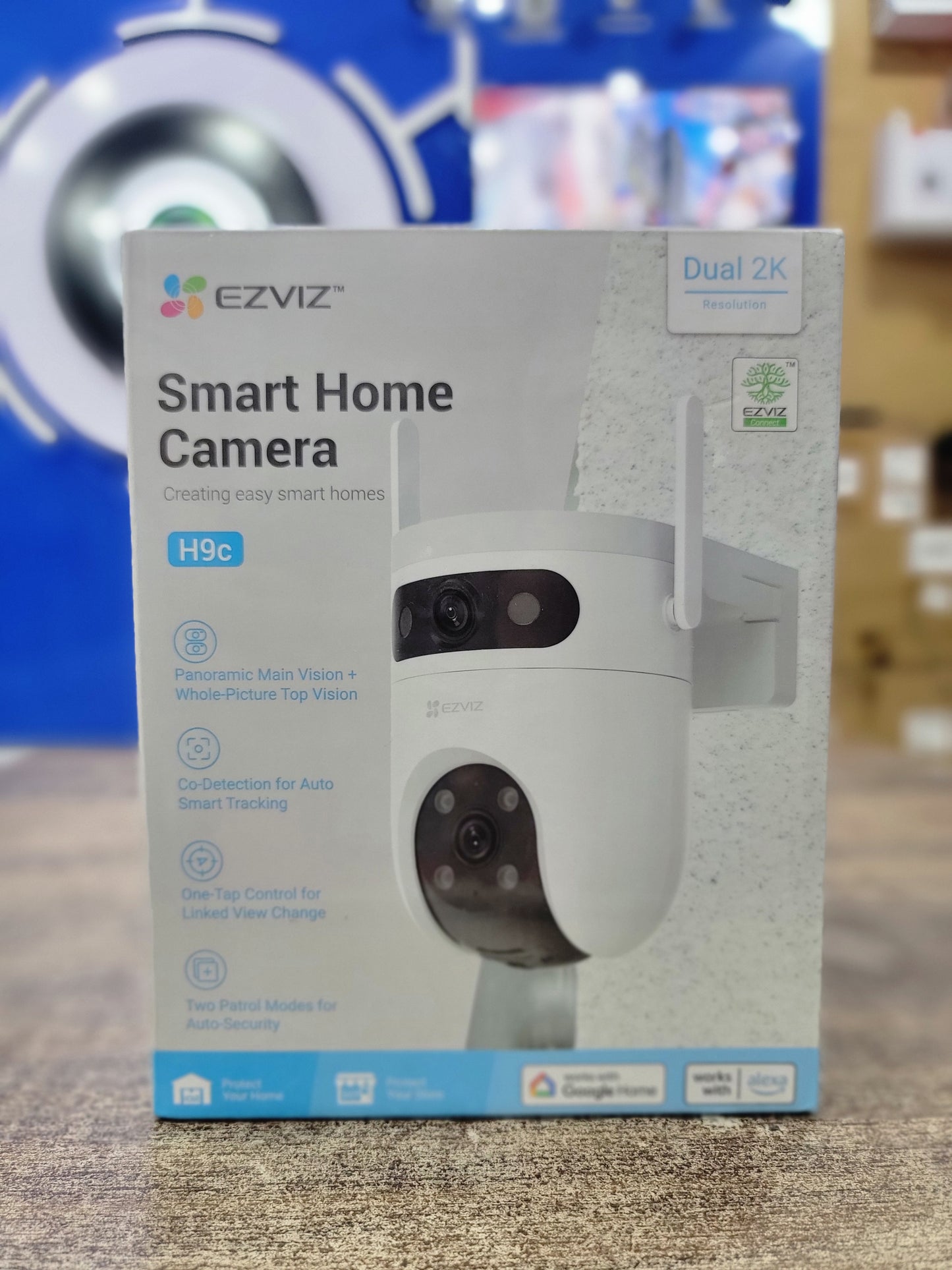

Ezviz H9C 3MP Smart Home Camera

Specifications
Model    CS-H9c-R100-8H33WKFL

Camera
Image Sensor: 1/2.7" Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Lens: Upper Camera: 2.8mm@ F1.6, viewing angle: Diagonal 130°, Horizontal 108°, Vertical 56° Bottom Camera: 6mm@F1.6, viewing angle: Diagonal 62°, Horizontal 55°, Vertical 28°
PT Angle: Pan: 350°, Tilt: 80°
Minimum Illumination 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount: M12
Day & Night: IR-cut filter with auto-switching
DNR: 3D DNR
WDR: Digital WDR
Black & White Night: 30m / 98ft

Video & Audio
Max Resolution: 2304 × 1296
Frame Rate: Max:15fps; Self-Adaptive during network transmission
Video Compression: H.265 / H.264
H.265 Type: Main Profile
Video Bit Rate: Quad HD, Full HD, Hi Def, Standard. Adaptive bit rate.
Audio Bit Rate: Self-Adaptive

Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Transmission Rate:11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing: AP paring
Protocol: EZVIZ cloud proprietary protocol
Interface Protocol:EZVIZ cloud proprietary protocol
Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Security: WPA-PSK/WPA2-PSK

Storage
Local Storage MicroSD card slot (Up to 512GB)

Cloud Storage EZVIZ Cloud Storage (Subscription Required)

Function
Smart Alarm AI-Powered Human Shape Detection
Customized Alert Area Supports
Two-way Talk Supports
General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

General
Operating Conditions -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)
IP Grade: Weatherproof Design
Power Supply: DC 12V/1.5A
Power Consumption MAX. 12W
Dimensions: 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch)
Packaging: Dimensions    150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch)
Net Weight: 668 g
With Package: 960 g

In the box
In the box - H9c Camera
- Drill Template
- Screw Kit
- Waterproof Kit
- Power Adapter
- Regulatory Information
- Quick Start Guide
